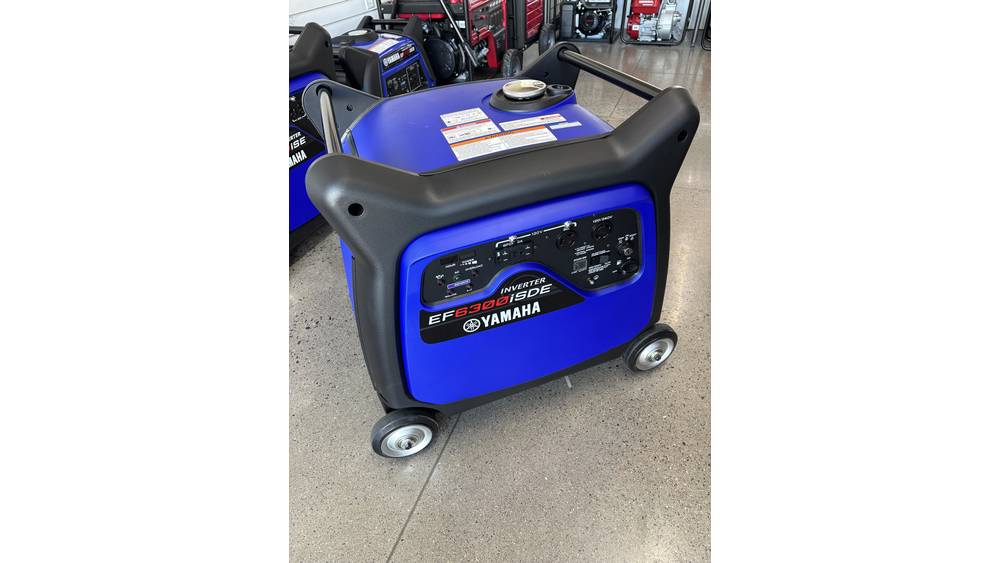

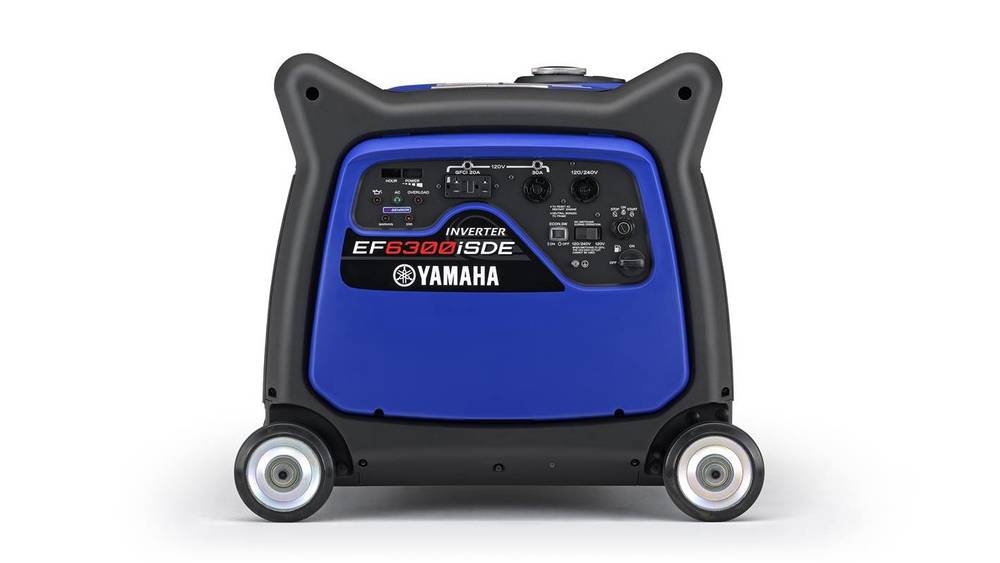

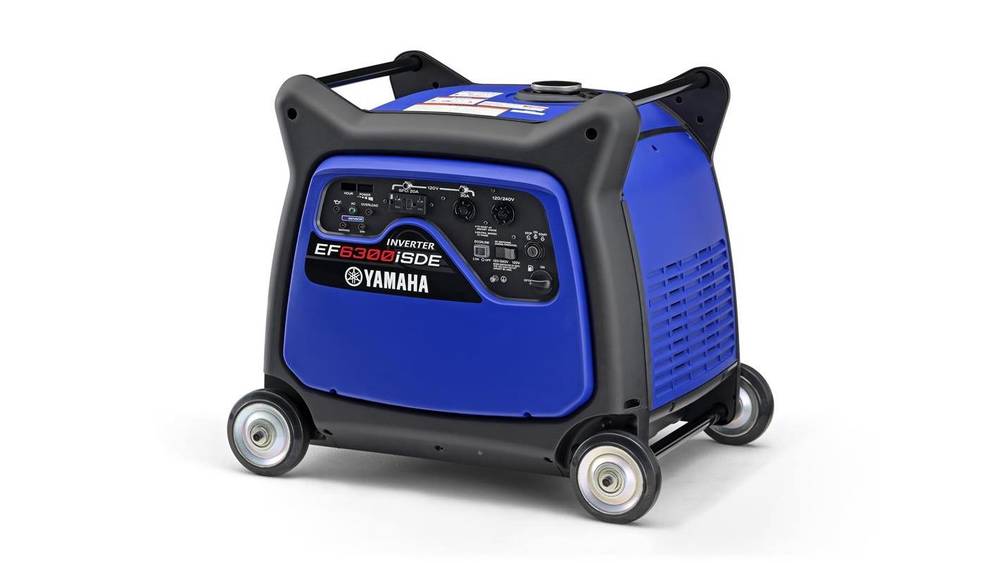

2024 Yamaha EF6300iSDE

Protection Features

CO Sensor - Engine shuts off if a high level of carbon monoxide is detected.

Ground Earth Terminal - Prevents electric shock.

Overload Indicator - Alert indicator if rated power is exceeded.

Power Features

RV Ready - 30-amp RV outlet.

Home Back Up Ready - Full power 120/240 dual voltage 4 prong outlet.

Maximum AC Output - 6300 Watts

Reliability Features

3 Years Limited Warranty

Low Oil Warning System — Shuts the engine off to protect the engine if the oil level drops.

Durable Yamaha MZ360 Engine — Designed for long life.

Ease of Operation Features

Electric Start — Effortless turn the key to start.

Noise Block Sound Reduction System — Very quiet 58-64 decibels.

Automatic Choke — Easy starting even in cold climates.

Smart Throttle — Automatically adjusts engine speed to match power demand, reduces noise, and fuel consumption.

Fuel Gauge — Indicates amount of gasoline to indicate refueling interval.

50 state legal - EPA & CARB.

Specifications

Type: Brushless, Inverter

Maximum AC Output: 6300 watts

Rated AC Output: 5500 watts

Rated / Maximum AC Current: 45.8 amps / 52.5 amps @120V - 22.9 amps / 26.3 amps @ 240V

Engine: OHV, air-cooled, single cylinder, 4-stroke

Displacement: 357cc

L x W x H: 30.7 x 24.3 x 27.2 in.

Dry Weight: 200 lb.

Fuel Tank Capacity: 4.5 gal

Continuous Operation at 1 / 4 Rated Load: 13.3 hr

Noise Level (1 / 4 Load - Rated Load): 58 ~ 64 dBA

Warranty: 3 Years Limited Warranty

NOTES:

Price and specifications subject to change without notice. Please read your Owner's Manual and the product warning labels before operation.
