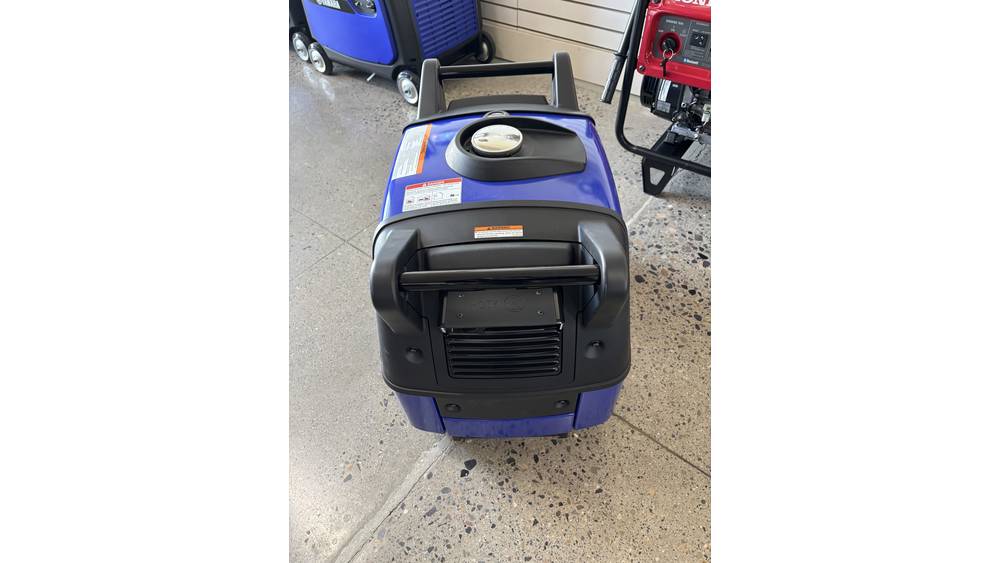

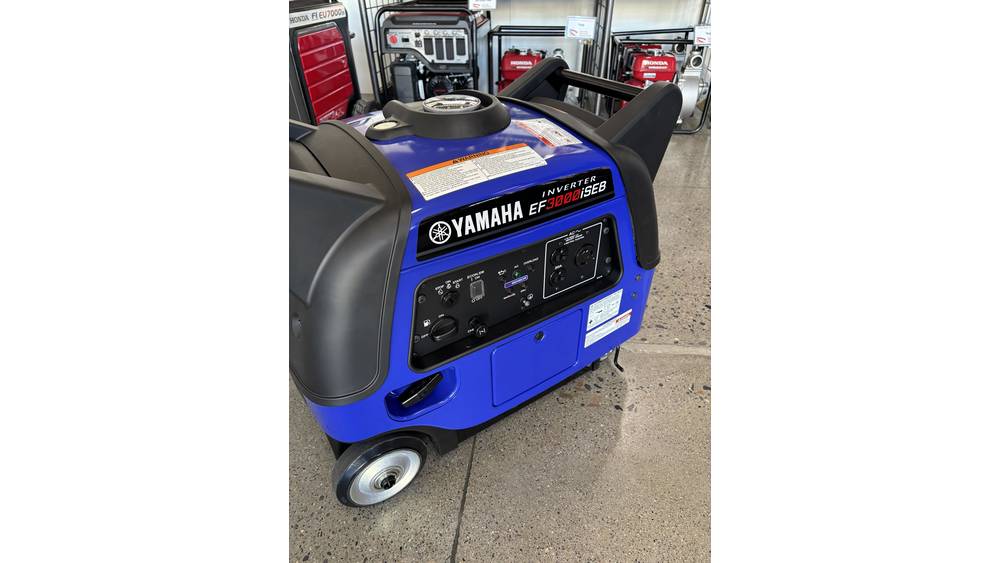

2024 Yamaha EF3000ISE

Despite its sizeable power, the EF3000iSE is whisper-quiet, producing noise levels ranging from 54.5 to a maximum of 61 dB - and because it's mounted on four wheels, moving it around couldn't be easier. The Smart Throttle / Economy Control feature automatically adjusts engine speed to match the load, for greater fuel efficiency and reduced engine wear.

Features

Powered by Yamaha's MZ175; 171cc, air-cooled (fan assist), OHV, 2-valve, 4-stroke, single cylinder engine with electronic transistor controlled (TC) ignition.

Super convenient key operated electric starting with manual recoil back-up.

Cast iron cylinder liner provides excellent heat dissipation and extends service life.

Pulse Width Modulation provides super "clean" power. As clean or cleaner than you get from a household receptacle.

Rated AC output for continuous use is 2,800 watts / 23.3 amps.

Floating neutral

Non-fuse type circuit breaker (NFB) prevents internal circuit damage in the event of an over load.

Smart Throttle / Economy Control automatically adjusts engine speed to match the load, saving fuel, reducing noise and engine wear.

Yamaha's Noise Block body design features a moulded casing and noise-absorbing glass wool to provide ultra quiet operation.

Manual choke

Auto Warm Up (4 to 6 minutes) ensures consistent power delivery during cold start-ups.

Yamaha's Oil Watch Warning System automatically shuts off the engine when oil level is low and will not re-start until oil is added, preventing costly engine damage and enhancing long-term durability.

Indicator lights for AC power output, low oil and AC overload

Cleanable spark arrestor stops the possibility of sparks from exiting the exhaust.

Washable foam air filter reduces maintenance costs

12 Volt DC output and cables for charging RV, auto and marine 12-volt batteries.

On-off fuel petcock lets you shut off the gas to run the carb dry for storage, helping to prevent stale fuel problems, which are becoming more common with ethanol based fuels.

Large fuel filler hole. Fuel gauge is standard.

Built in wheels (4), with parking brake, makes moving the EF3000iSE easy.

Optional wireless remote start & stop

CSA approved (Canadian Standards Association)

EPA & CARB Emission Engine Durability Rating. Yamaha generators have the longest emission engine durability ratings issued by the Environmental Protection Agency and the California Air Resources Board.

3-year warranty for "residential / home" use or "commercial use."

Generator

Type: Inverter

Maximum AC Output (Watts / Amperes): 3000 W / 25 A

Rated AC Output (Watts / Amperes) - Continuous Use: 2800 W / 23.3 A

AC Voltage & Frequency (HZ): 120 V / 60 HZ

Voltage Regulator: Inverter (Pulse Width Modulation)

Neutral: Floating

DC Output (Volts / Amp): 12V / 8.3A

Engine

Model: MZ175, 171cc, air-cooled (fan assist), OHV, 2-valve, 4-stroke, single

Starting System: Electric & manual recoil (with auto decompressor)

Ignition: Transistor Controlled (TCI)

Recommended Fuel: 87 octane regular gasoline

Engine Oil Capacity: 0.6L

General

L X W X H Mm (In): 680 x 445 x 555 (26.8 x 17.5 x 21.9)

Dry Weight: 69kg (152 lb)

Fuel Tank Capacity (L): 13.0

Operating Hours (@ 1 / 4 Load): **18.6 hrs

Operating Hours (@ Rated Load): **7.8 hrs

Noise Level (@ 7 Metres): **54.5 ~ 61 dB

Technical Features

Non-Fuse Circuit Breaker System (Nfb): Standard

Pilot Lamp (AC Output): Standard

Warning Lamps (Overload / Low Oil): Standard

Smart Throttle / Economy Control: Standard

Oil Watch Warning System: Standard

Fuel Level Gauge: Standard

Automatic Warm-Up: Standard

Spark Arrestor: Standard

Accessories

Transportation Wheel Kit: 4 wheel Standard

DC Charging Cable: Standard

Warranty

Private Use†: 3-years limited

Commercial Use†: 3-years limited
