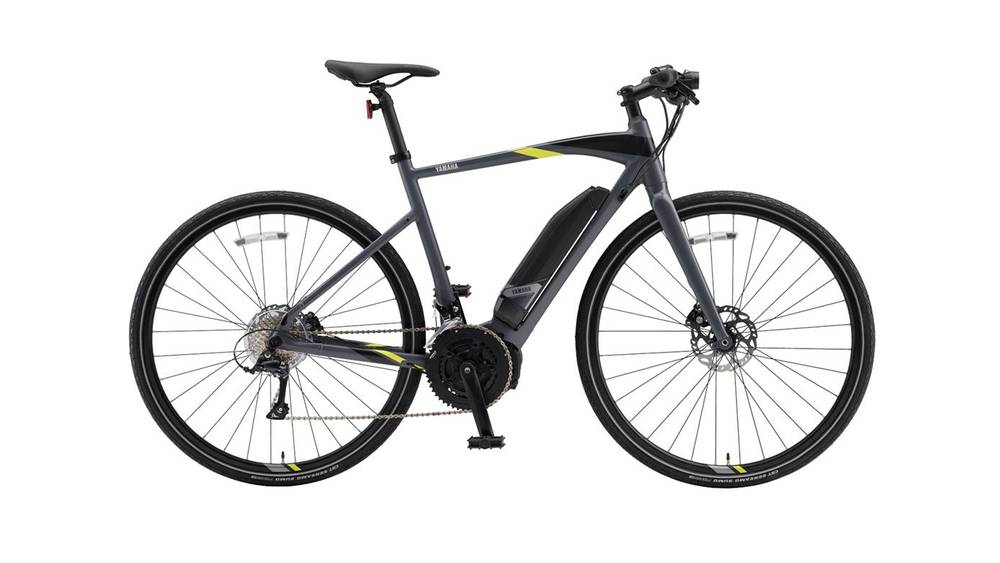

2020 Yamaha CrossCore

Your daily trek isn’t like others. You’re surrounded by hills and you demand more than just a regular fitness bike. You want the efficiency of a road bike, ergonomic comfort of a flat handlebar and power assist technology that allows you to charge the day. Grab your CrossCore and live Generation Go!

Features

PWSeries SE Drive Unit: Integrated to the bottom bracket, the drive unit provides a low center of gravity for exceptional handling. Four levels of smooth, powerful assist deliver a ride experience the feels natural and organic.

Mechanical Disc Brakes: Shimano Sora mechanical disc brakes with 160mm center lock rotors provide strong,  dependable braking in all conditions.

Double Front Chainring: Shimano Sora front derailleur and the double chainring (50/34T) offer quick shifting with optimum gear range.

Rear Rack and Fender Mounts: CrossCore has built-in bosses ready to accept Yamaha’s accessory rear rack with integrated LED taillight and rear fender.

Yamaha 500Wh Battery: Yamaha’s 500 Watt-hour Lithium-ion battery pack provides reliable & long lasting energy to power your rides. When it’s time to replenish, you can charge the battery pack on or off CrossCore using the Yamaha high speed charger.

Fender Mount Tabs: CrossCore's fork has mounting tabs for easy installation of Yamaha’s accessory front fender.

LED Headlight: CrossCore is equipped with a powerful LED headlight to help guide the way. The headlight’s on/off button is built into CrossCore’s multi-function display housing for easy access while riding.

Integrated Speed Sensor: Exclusive to Yamaha Power Assist Bicycles is a speed sensor engineered into the rear hub. Our speed sensor recognizes the slightest change in bicycle speed and helps adjust motor input to deliver a smooth and natural power assist feel for the ultimate ride experience.

Multi-Function Display: The main LCD interface allows you to choose from a full suite of functions; Speedometer, average speed, maximum speed, odometer, trip meter, battery capacity, battery range, cadence, clock and stopwatch. The color-coded LED assist level indicator is easy to see at a glance.

Specifications

Suggested Use: Road, Urban Bike Path

Colors: Ocean Blue/Bright White; Dark Olive/Black; Slate Gray; White Opal/Blue

Size: 53cm (S), 55cm (M), 58cm (L)

Total Weight: 43.5lb (M)

Motor: PWSeries SE; Center mount; Square taper spindle; Triple Sensor System with integrated speed sensor as part of rear hub; Weight: 7.71lb; Rated power: 250W (Nominal), 500W (Max); Max torque: 70Nm; Max cadence support: 110rpm; Max speed support: 20mph Support modes: ECO+, ECO, STANDARD, HIGH

Control Switch and Multi-Function Computer: Computer control functions include: (4) Power-level control switch, stop watch, distance units, power-level LED on/off, Bluetooth™ connectivity, USB power, USB connectivity, cycling function display items, time adjustment, LED headlamp power on/off, 3-color LED power assist level light indicator. Cycling function display include: speed, average speed, maximum speed, trip distance, odometer, cadence, battery capacity (%)

Battery: Yamaha 500Wh with charge-life indicator and self-diagnosis display; Side-exiting dock station with anti-vibration mounting plate; Weight 6.61lb; 500Wh 36V; 4-hour charge time

Frame: Yamaha hydroformed and butted alluminum tubing; Internal cable/housing routing; Accessory mount; Fender and Rack compatible; 3-bolt motor mount; 12 x 142 rear spacing; Integrated speed sensor harness

Fork: Alloy, 12mm thru-axle, fender compatible, internal cable housing routed; 1 1/8in steerer

Headset: Integrated headset with 30mm headset spacers

Stem: Yamaha Alloy 4-bolt faceplate; 31.8 diameter; 80mm length (53cm, 55cm); 100mm length (58cm)

Handlebar: Alloy flat bar zero degree rise; 31.8mm diameter; 640mm width

Grips/Tape: Locking ergonomic two-tone

Seatpost/Saddle Clamp: Alloy 30.9 x 260mm (S), 315mm (M), 350mm (L) with 2-bolt adjustable tilt saddle rail clamp

Seatpost Collar: Alloy 2-bolt 35.0mm

Saddle: Yamaha Road Plus Cro-Mo Rail

Shifters: Shimano 9-speed Sora trigger shifter; Gear selection window

Front Derailleur: Shimano Sora (2 x 9) Braze-on

Rear Derailleur: Shimano Sora RD-3000 GS 9-speed

Crankarm: Square taper; 165mm (S); 170mm (M); 170mm (L)

Chain: KMC X9e

Cassette: Shimano 9-speed; 11/30T

Chainring(S): 50/34T E-Ring 110 BCD

Brakes/Rotors: Shimano Sora BL-R3000 Mechanical Disc 160mm SM-RT68 Centerlock Rotor

Rims: 700c; Dual channel welded pin rim; Eyelet spoke holes; Width 24.5mm (OUTSIDE) 19mm (INSIDE)

Spokes: Spokes SUS304

Spoke Nipples: Brass

Hubs: Anodized. Centerlock brake mount. front hub 12 x 100 TA, rear hub 12 x 142 Shimano freehub and Yamaha Bicycles Speed Sensor

Tires/Tubes: CST Sensamo Sumo 700 x 35c Level-5 Flat Protection Reflective Sidewall approved for eBike use; PV Tube

Accessories: Yamaha Keys; Yamaha battery charger; LED Headlamp; Bell

Warranty: 3-Year on Frame, Motor, Battery*; Component Manufacturer's warranty** is supported by Yamaha
